Introduction

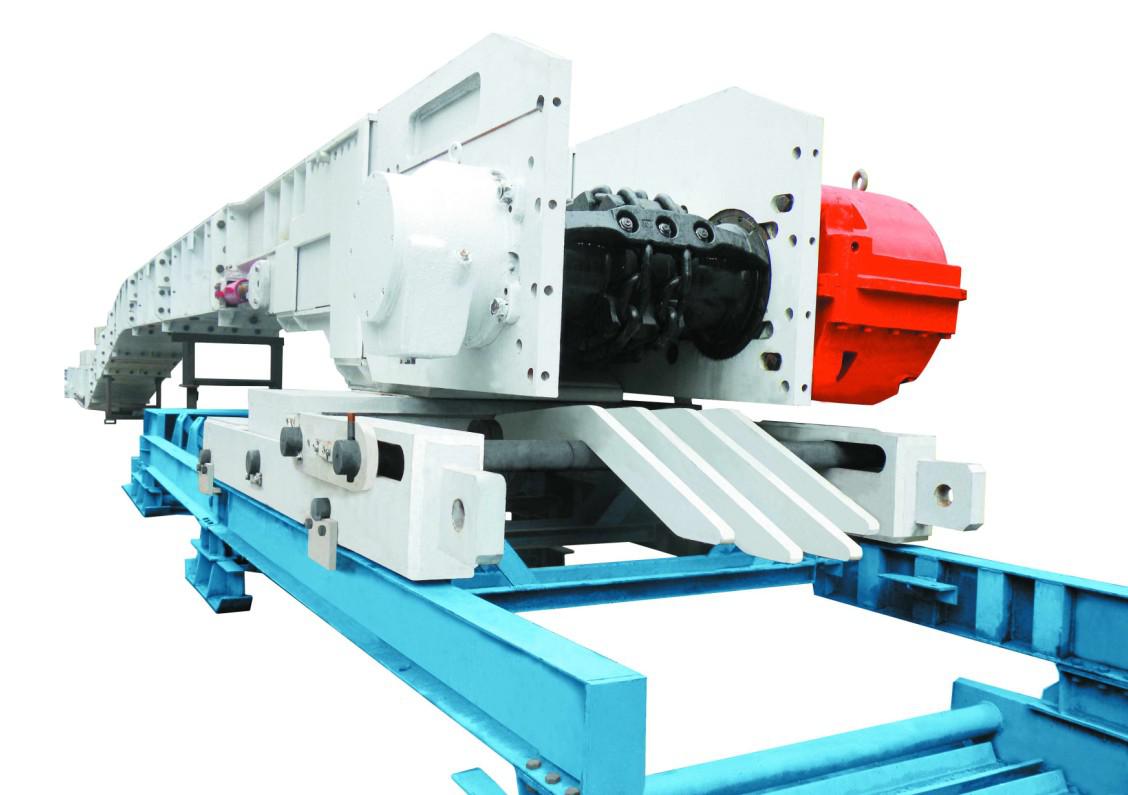

The reversing loader works together with the armored conveyor, its function is to lift and disload the coal from the conveyor to the belt conveyor, the coal will be broken by the crusher firstly.

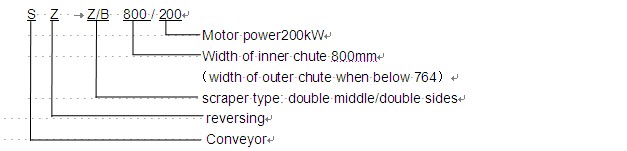

Meaning of model
Specification
|
Model |
Length (m) |
Transport capacity
(t/h) |
Chain speed
(m/s) |
Chain
(mm) |
Motor power
(kW) |
Reducer model |
Chute size
£¨L¡ÁInner W¡ÁH£© |
Move type |
|
|
|
630 series |
SZB630/40 |
45 |
250 |
0.868 |
¦Õ18¡Á64-C |
40 |
JS40 |
1500¡Á630¡Á640 |
|
|
|
SZB630/2¡Á40 |
45 |
350 |
0.868 |
¦Õ18¡Á64-C |
2¡Á40 |
JS40 |
1500¡Á630¡Á640 |
|
|
|
SZB630/75 |
30 |
350 |
0.868 |
¦Õ18¡Á64 |
75 |
JS75 |
1500¡Á630¡Á450 |
|
|
|
SZB630/90 |
30 |
400 |
0.868 |
¦Õ18¡Á64 |
90 |
JS90 |
1500¡Á630¡Á450 |
|
|
|
SZZ630/110 |
45 |
500 |
1.26 |
¦Õ26¡Á92-C |
110 |
JS110 |
1500¡Á590¡Á510 |
|
|
|
SZZ630/132 |
45 |
500 |
1.26 |
¦Õ26¡Á92-C |
132 |
JS132 |
1500¡Á590¡Á510 |
|
|
|
730
series |
SZZ730/110 |
45 |
600 |
1.1 |
¦Õ26¡Á92-C |
110 |
JS110 |
1500¡Á680¡Á800 |
|
|
|
SZZ730/132 |
50 |
700 |
1.33 |
¦Õ26¡Á92-C |
132 |
JS132 |
1500¡Á680¡Á800 |
|
|
|
SZZ730/160 |
45 |
800 |
1.33 |
¦Õ26¡Á92-C |
160 |
JS160 |
1500¡Á680¡Á800 |
|
|
|
SZZ730/200 |
50 |
800 |
1.33 |
¦Õ26¡Á92-C |
200 |
JS200 |
1500¡Á680¡Á800 |
|
|
|
764 series |
SZZ764/110 |
50 |
600 |
1.3 |
¦Õ26¡Á92-C |
110 |
JS110 |
1500¡Á724¡Á800 |
Walk self moving |
|
|
SZZ764/132 |
50 |
900 |
1.1 |
¦Õ26¡Á92-C |
132 |
JS132 |
1500¡Á724¡Á800 |
Walk self moving |
|
|
SZZ764/160 |
50 |
1000 |
1.3 |
¦Õ26¡Á92-C |
160 |
JS160 |
1500¡Á724¡Á800 |
Walk self moving |
|
|
SZZ764/200 |
50 |
1000 |
1.33 |
¦Õ26¡Á92-C |
200 |
JS200 |
1500¡Á724¡Á800 |
Walk self moving |
|
|
800 series |
SZZ800/160 |
50 |
1500 |
1.83 |
¦Õ34¡Á126-C |
160 |
JS160 |
1500¡Á800¡Á1110 |
Walk self moving |
|
|
SZZ800/200 |
50 |
1600 |
1.86 |
¦Õ34¡Á126-C |
200 |
JS200 |
1500¡Á800¡Á1110 |
Walk self moving |
|
|
1800 |
1.83 |
¦Õ34¡Á126 |
1500¡Á800¡Á1110 |
|
|
SZZ800/250 |
50 |
1800 |
1.83 |
¦Õ34¡Á126-C |
250 |
JS250 |
1500¡Á800¡Á1110 |
Walk self moving |
|
|
SZZ800/315 |
50 |
1800 |
1.83 |
¦Õ34¡Á126-C |
315 |
JS315 |
1500¡Á800¡Á1110 |
Walk self moving |
|
|
900 series |
SZZ900/200 |
50 |
1600 |
1.83 |
¦Õ34¡Á126-C |
200 |
JS200 |
1500¡Á900¡Á1110 |
|
|
|
SZZ900/250 |
50 |
1600 |
1.86 |
¦Õ34¡Á126-C |
250 |
JS250 |
1500¡Á900¡Á1110 |
|
|
|
SZZ900/315 |
50 |
1800 |
1.83 |
¦Õ34¡Á126-C |
315 |
JS315 |
1500¡Á900¡Á1110 |
|
|
|
1000
series |
SZZ1000/315 |
50 |
2000 |
1.5 |
¦Õ34¡Á126-C |
315 |
JS315 |
1500¡Á1000¡Á1110 |
|
|
|
SZZ1000/375 |
50 |
2000 |
1.49 |
¦Õ34¡Á126-C |
375 |
JS375 |
1500¡Á1000¡Á1110 |
|
|
|
SZZ1000/400 |
50 |
2000 |
1.56 |
¦Õ34¡Á126-C |
400 |
JS400 |
1500¡Á1000¡Á1110 |
|
|
